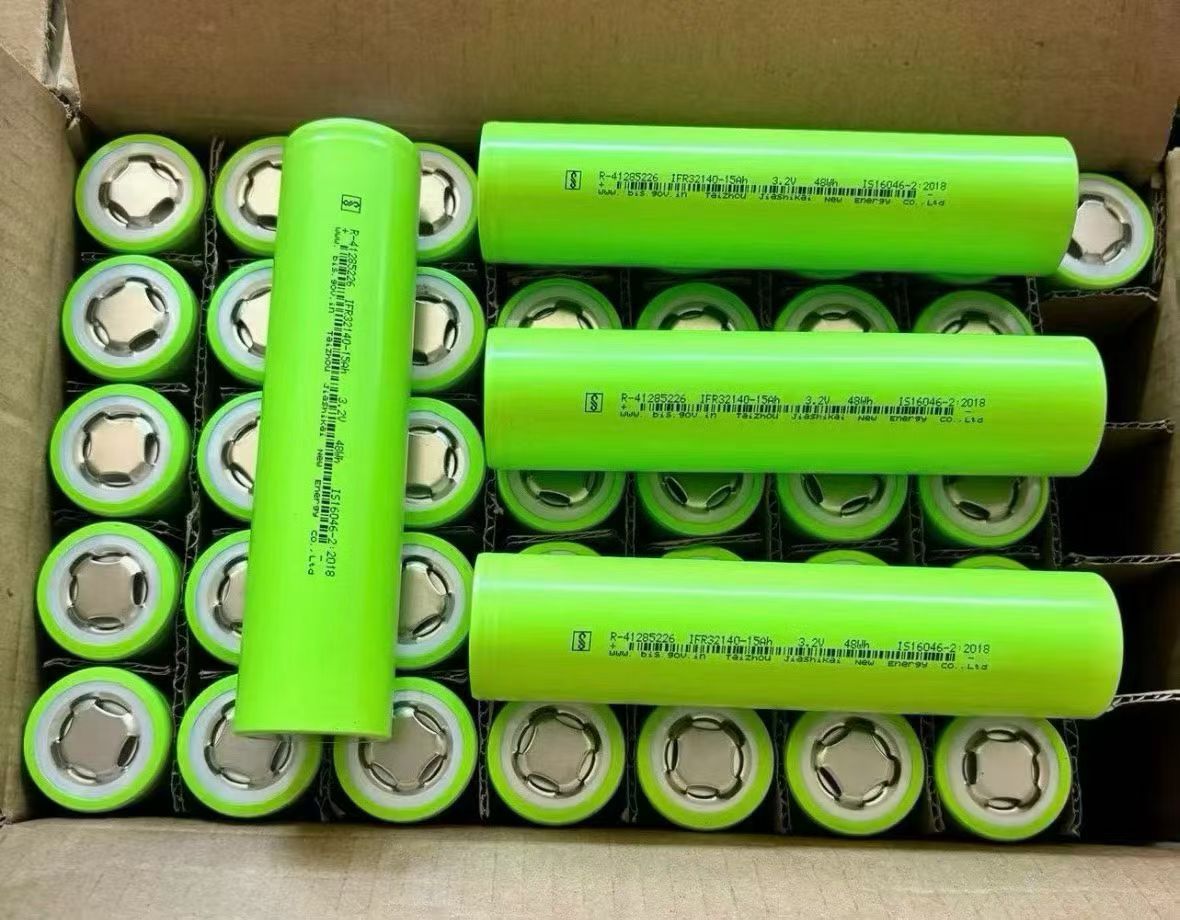

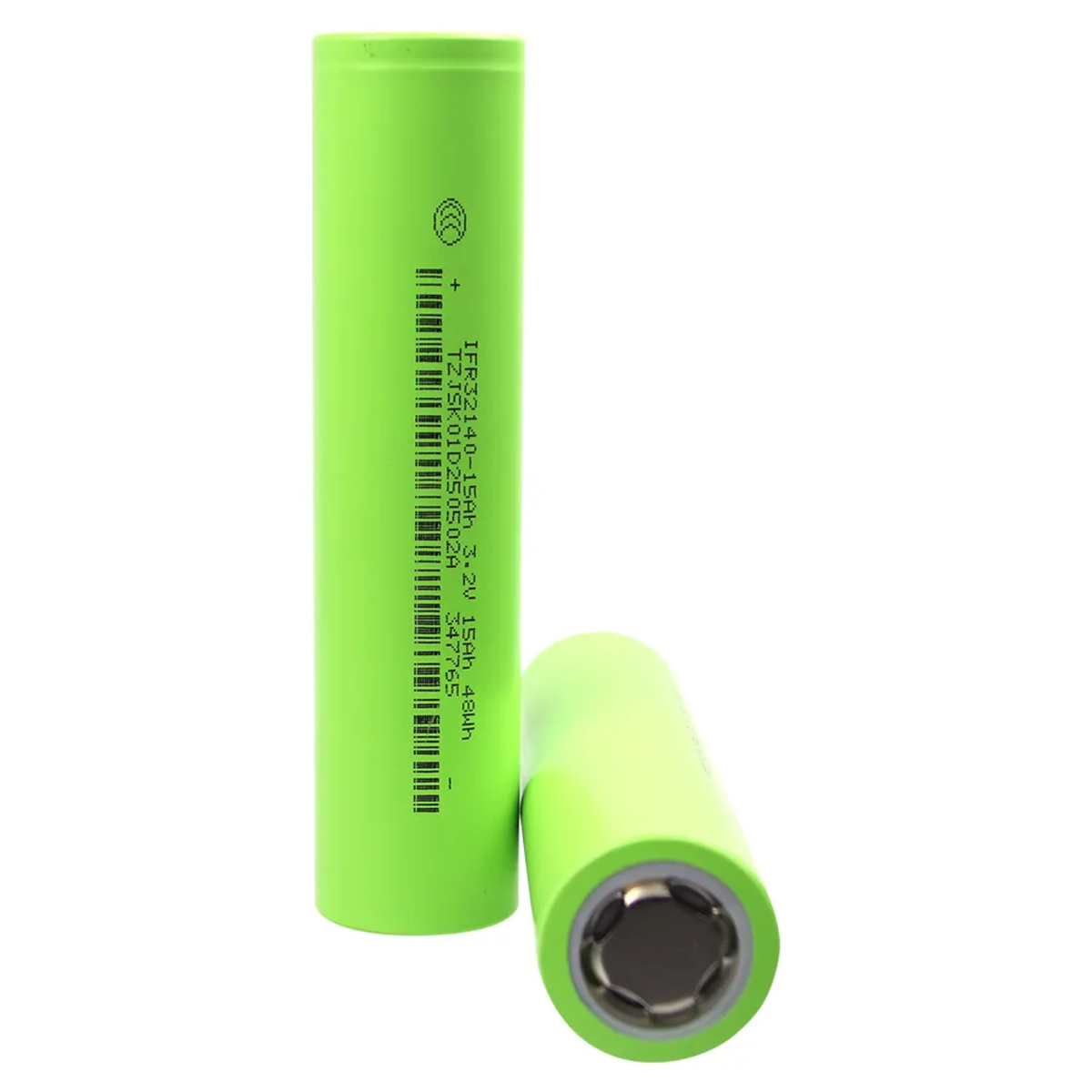

JSK IFR32140 15Ah 3.2V LiFePO4 Cylindrical Battery Cell

JSK IFR32140-15Ah rechargeable LiFePO4 cylindrical battery cell for battery pack assembly, energy storage and other compatible applications.

Key specifications

• Model: IFR32140-15Ah
• Chemistry: LiFePO4 (LFP)
• Nominal voltage: 3.2V
• Nominal capacity: 15Ah (minimum 14Ah)
• Nominal energy: 48Wh

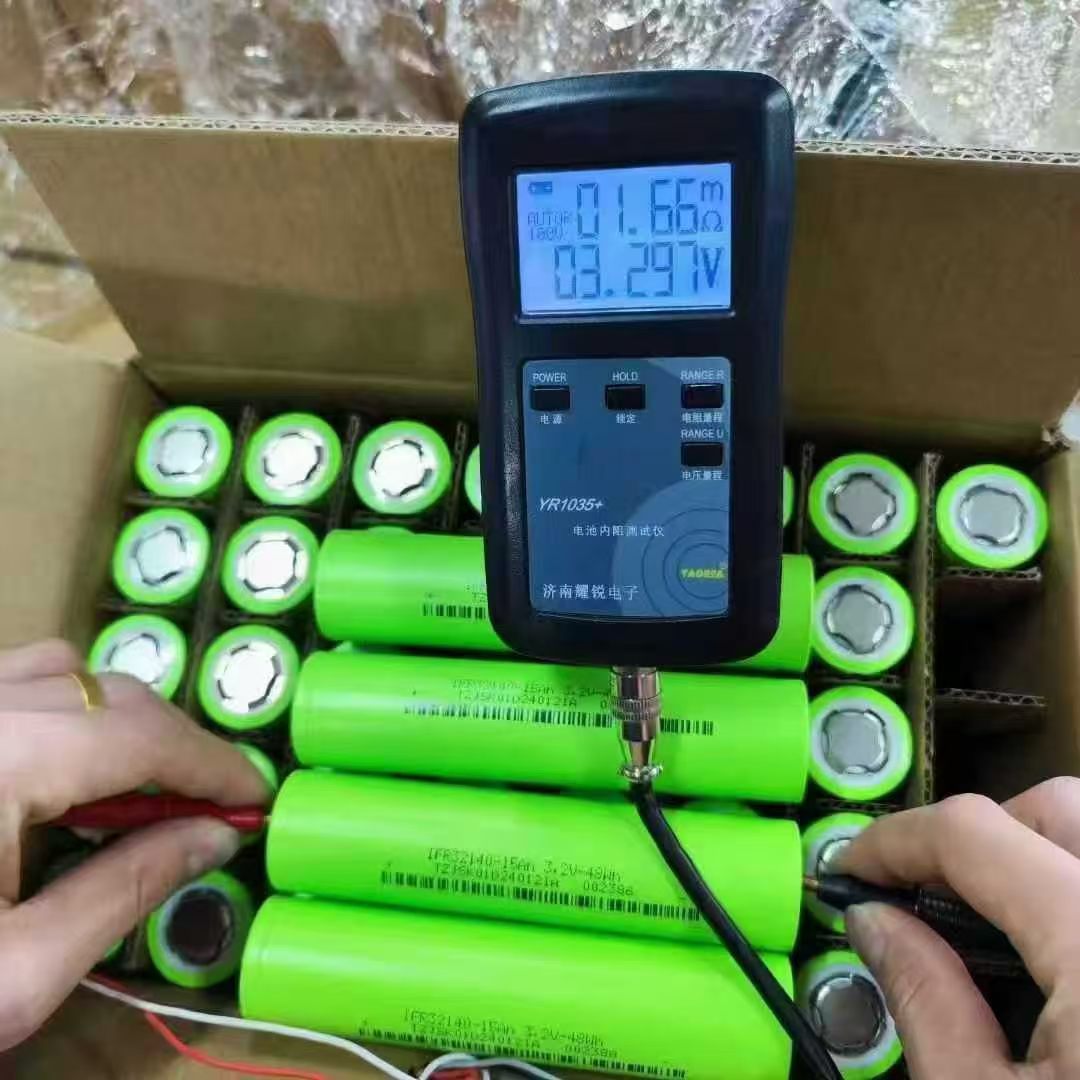

• AC internal resistance: ≤3mΩ
• Dimensions: 33.2 ± 0.2mm × 140 ± 0.2mm
• Weight: 295 ± 5g
• Standard charge: 0.5C (7.5A) to 3.65V
• Maximum continuous discharge: 45A
• Discharge cut-off voltage: 2.5V
• Cycle life: ≥3,000 cycles to 80% initial capacity under specified test conditions
• Operating temperature: charge 0°C to 60°C; discharge -20°C to 60°C

Important: This is an individual battery cell. Use a suitable BMS, charger and battery-pack design. Do not short-circuit, reverse polarity, puncture, crush, overcharge or expose the cell to fire or water.

UN38.3, MSDS and transportation documents are available on request. Confirm required quantity, matching, testing standard and shipping destination before ordering.
