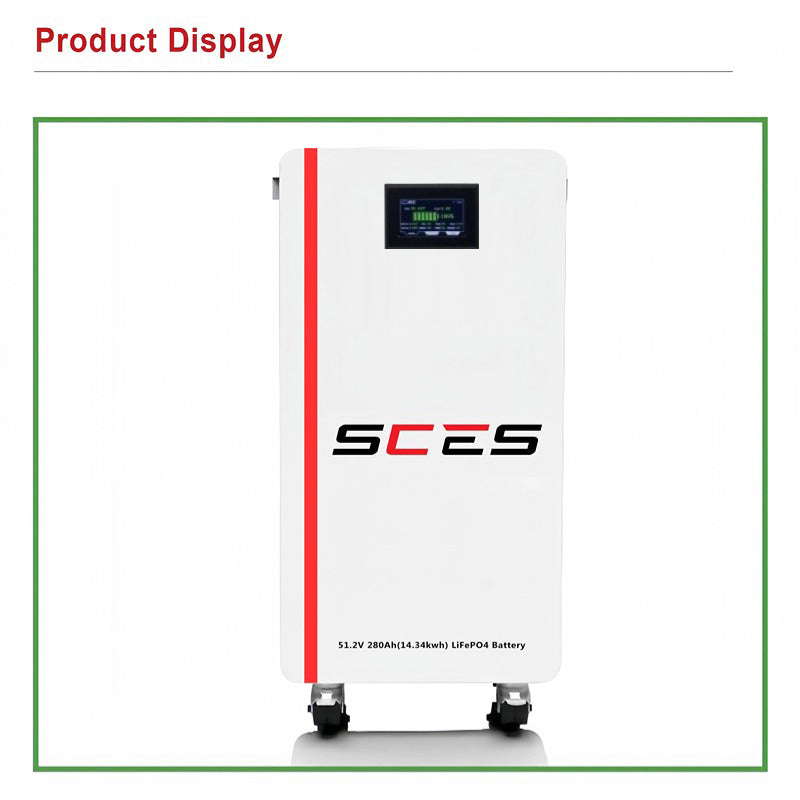

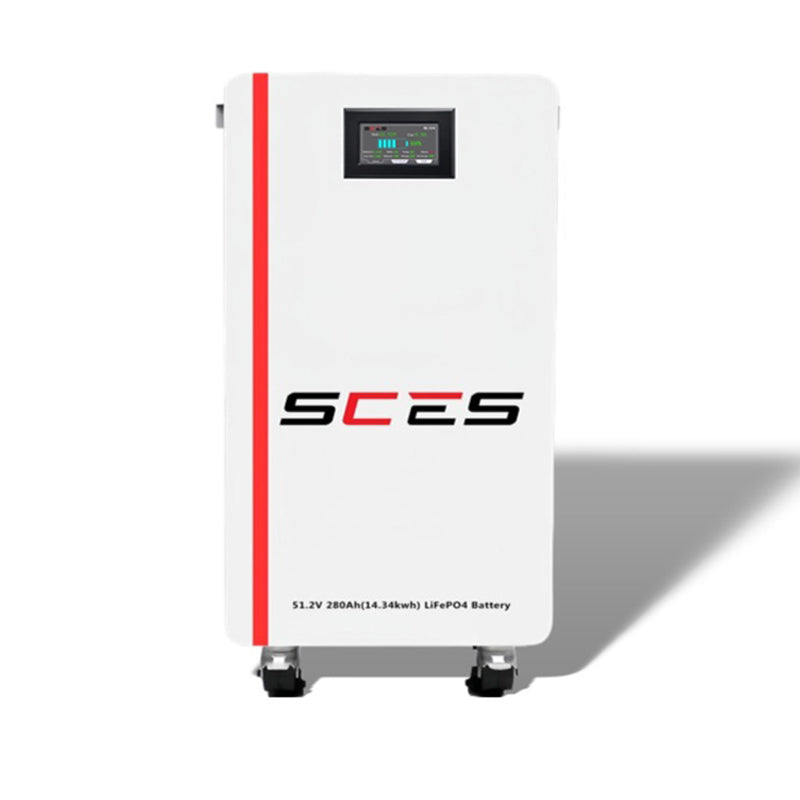

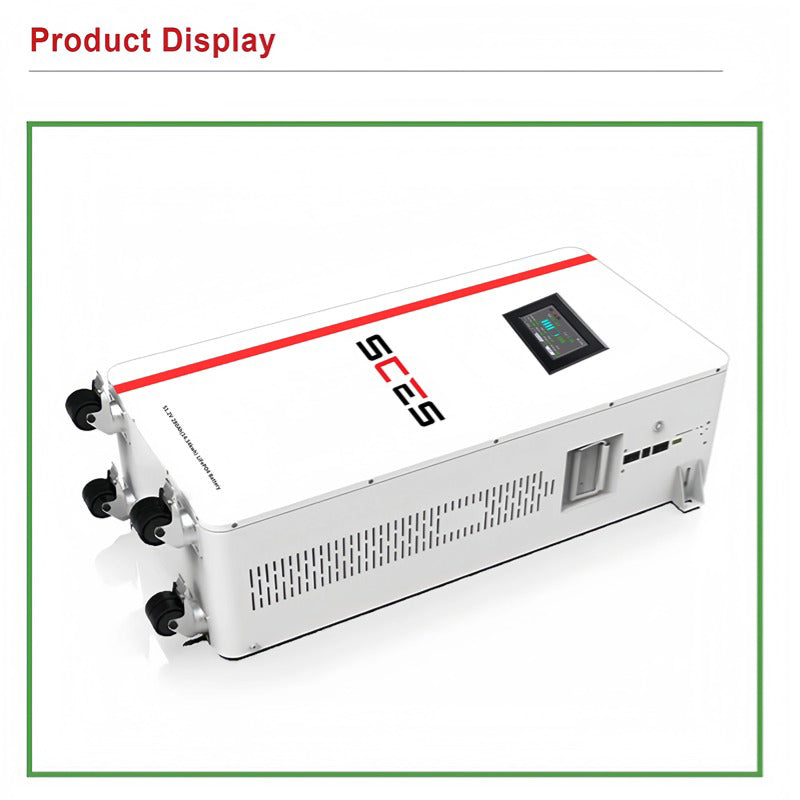

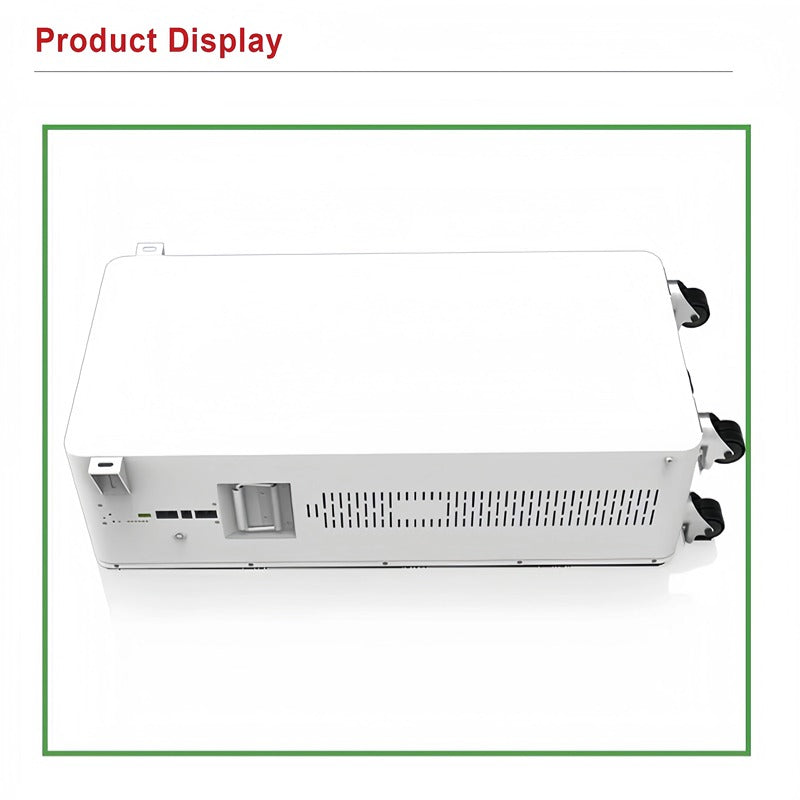

51.2V 15Kwh SCSE Mobile lithium iron phosphate battery pack for home solar energy storage system
51.2V 15Kwh SCSE Mobile lithium iron phosphate battery pack for home solar energy storage system
Specification(Preassembled powerwall)
Normal Voltage:51.2V
Norminal Capacity:300Ah
Energy Storage:15.36Kwh
Series or Parallel:16S1P
Size: L680W412*H231(MM)
Built-in BMS:16S 200A BMS
Net weight:145kg
Communication:CAN/RS485/RS232+LCD
Material: Lifepo4, Metal
Charge Current:100-200A
Maximum Charge Current:200A
Charge Voltage:56-57.6V
BMS Cut-off Voltage:57.6V
Reconnect Voltage:54.6V
Battery Cells inside Grade A EvE Cells
Stackable Type:up to 15 batteries
Share
You may want to know about this
Q: Which BMS is in the 48V battery box?
A: We use the 200A Bluetooth BMS in the box with CAN/RS485 communication.
Q: Is this the completed battery pack?Do I need anything else to run the battery?
A: Yes, we will test them before shipping,make sure the battery pack is able to work.we will prepare everything for you.
Q: If I want to build a 60kwh server rack system, what should I choose?
A: If you choose 48V 310Ah battery system(each one is 15Kwh),then you need 4 in total for yourr 60kwh power storage.
Q: What certifications do you have?
A: Our battery box has CE,and the battery cells have CE,UL, and MSDS.
Q: How do I set up the system?
A: The battery system can be connected to a PC, and you can set and manage the whole system on your computer.
Q: I have my own logo, can I print my logo on the battery?
A: Yes, we accept logo customization, but need large quantities (>10 sets). If you like any samples, please feel free to contact us:howard@eelbattery.com
