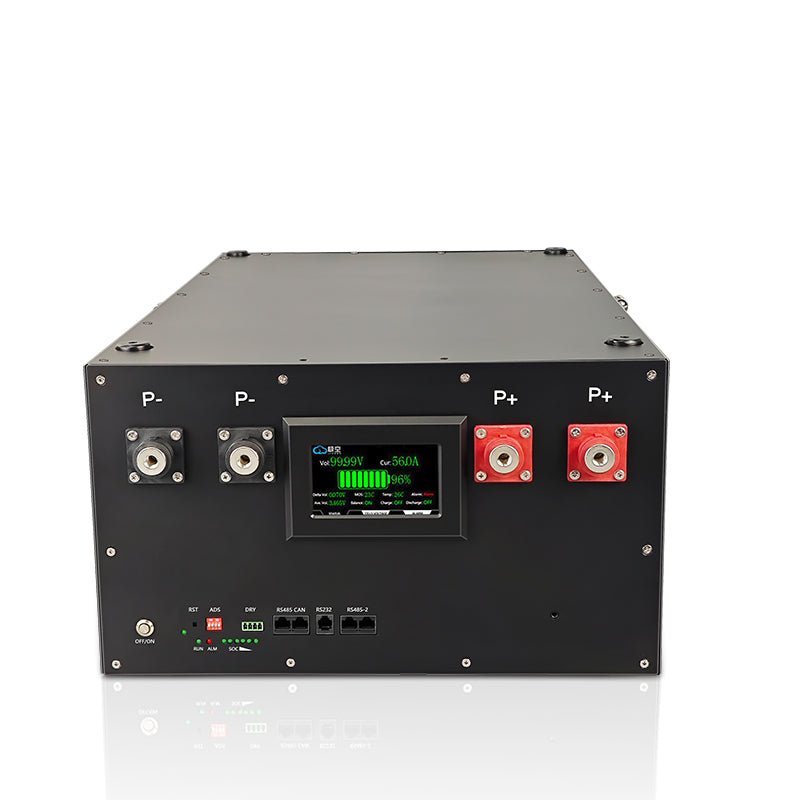

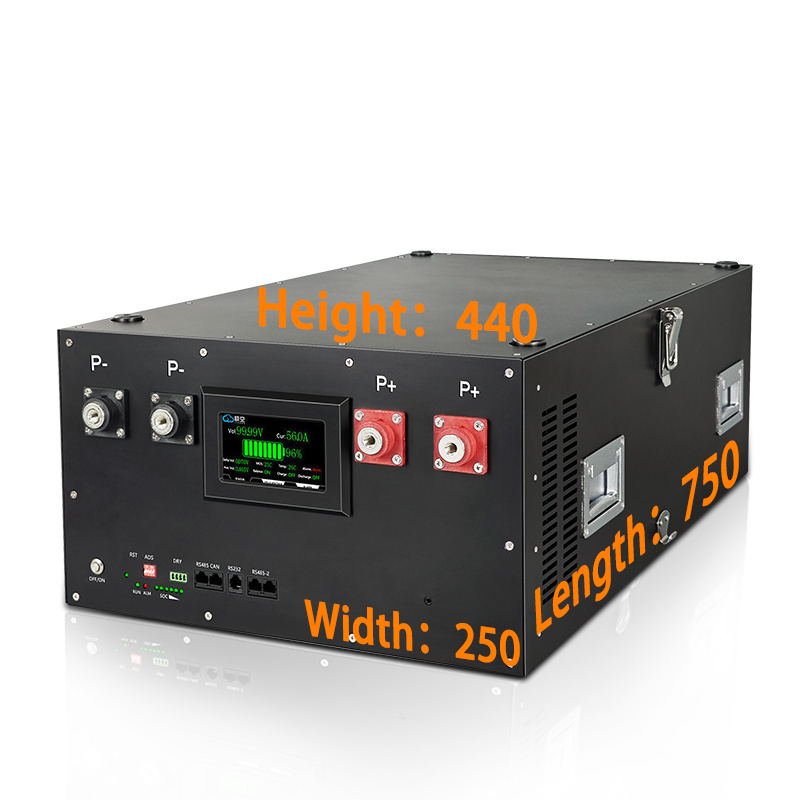

48/51.2V 280Ah LiFePO4 LFP Lithium Iron Phosphate Battery DIY Chassis 280Ah Solar Cell Stacking Chassis
48/51.2V 280Ah LiFePO4 LFP Lithium Iron Phosphate Battery DIY Chassis 280Ah Solar Cell Stacking Chassis
Parts List:

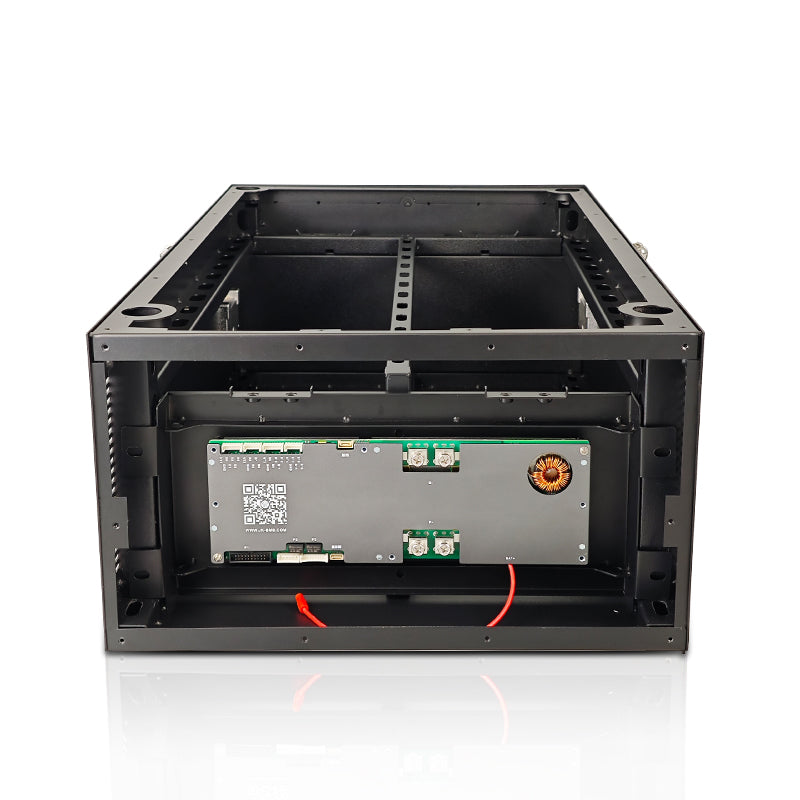

1 * Battery Box (Bottom Case, Front Panel, Top Bracket, Front Bracket, Top Cover)
1 * 48V 200A 16S SEPLOS BMS
1 * 58V 400A Fuse

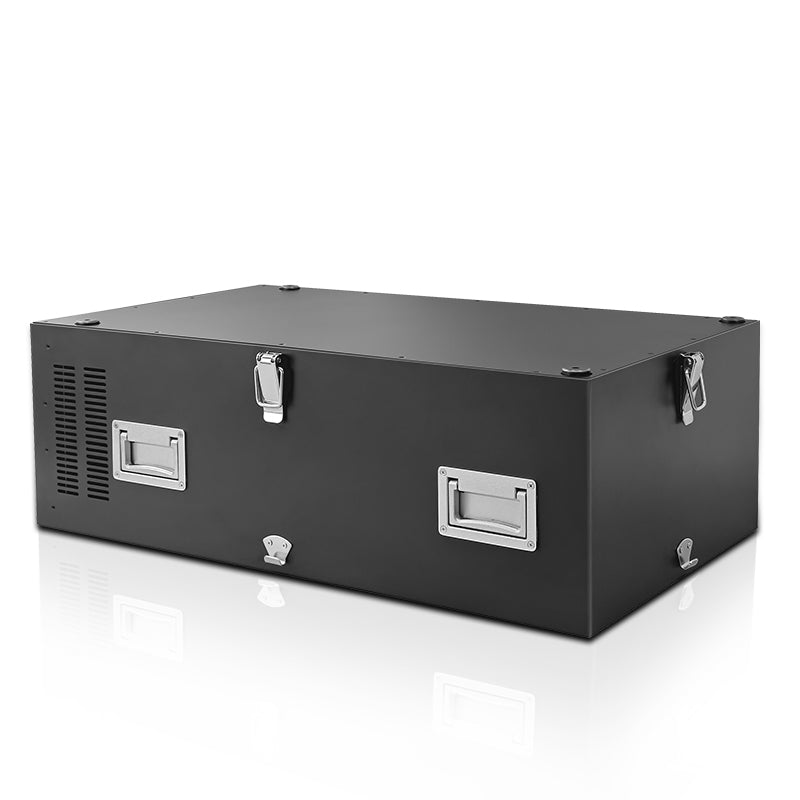

4 * Handle
2 * PCB for BMS and Battery Connection
3 * Upper and Lower Latches
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Caps
3 * Wires (LCD Screen Wire, PCB Board A and PCB Board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other Components Included:
6 * Copper Bus Bars (BMS Connection)
15 * Aluminum Bus Bars (Battery Connection)
10 * Epoxy Sheet (Between Battery and Case)
26 * EVA Tape (Between Cells) 1 * PC Board (Top Cover)
Screw Details:
12 * Phillips Hex M4 * 8mm (PCB Fixed)
9 * Phillips Hex M5 * 8mm + Washer + Spring set (ground cable and top bracket fixing)
7 * Phillips Hexagon M6 * 25mm + Washer + Spring set (front panel fixing)
10 * Phillips Round M3 * 8mm + Washer + Spring set (BMS and LCD screen fixing)
12 * Phillips Pan M5 * 10mm (latch fixing)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- terminal fixing)
42 * Hexagan Socket Countersunk M4 * 10mm (handle and battery box)
4 * Phillips Hexagon M6 * 14mm + Washer + Spring set (foot fixing)
5 * Phillips Hexagon M8 * 10mm + Washer + Spring set (P+/P- busbar fixing)
8 * Phillips Round M5 * 10mm + Washer
