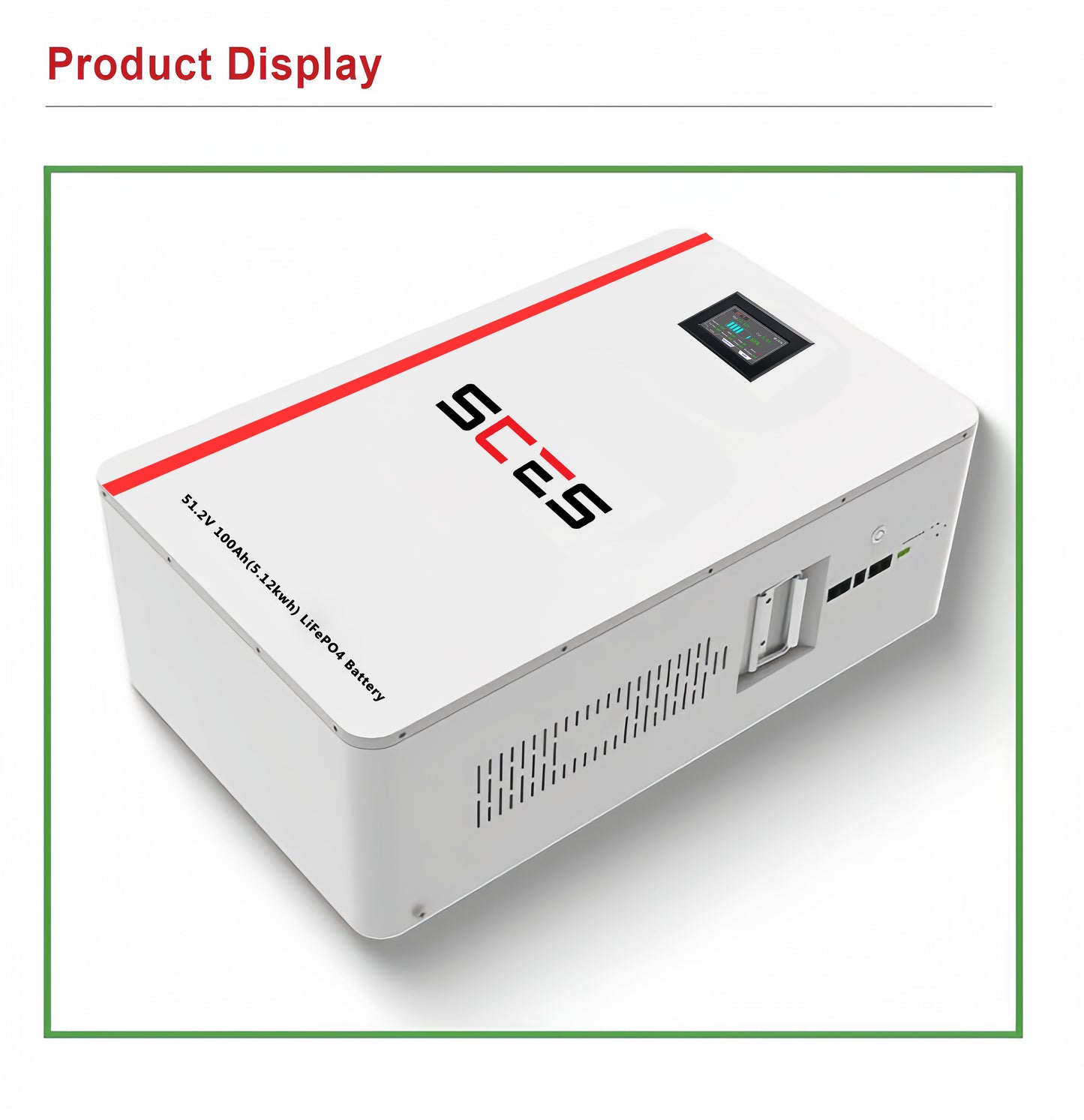

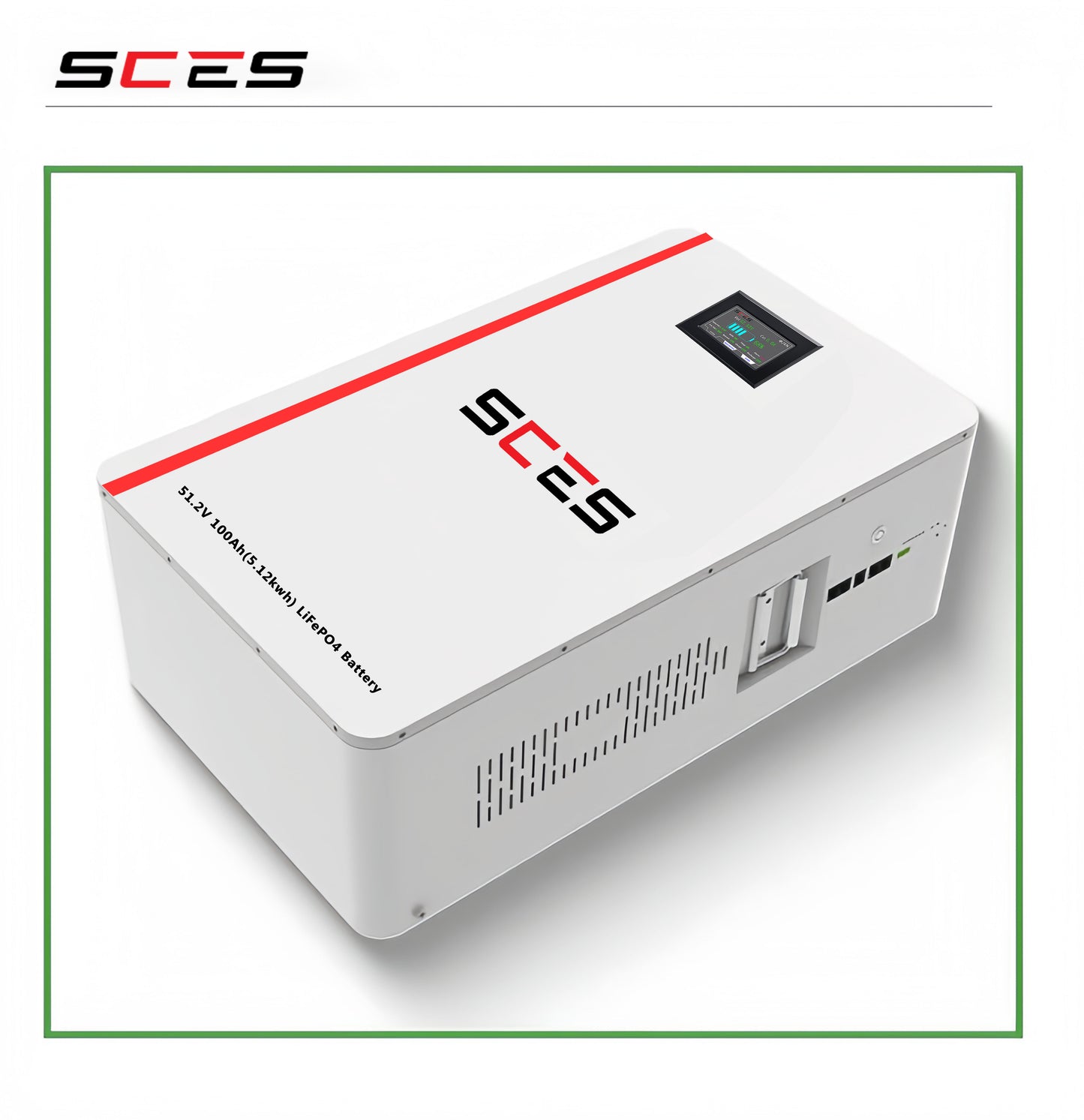

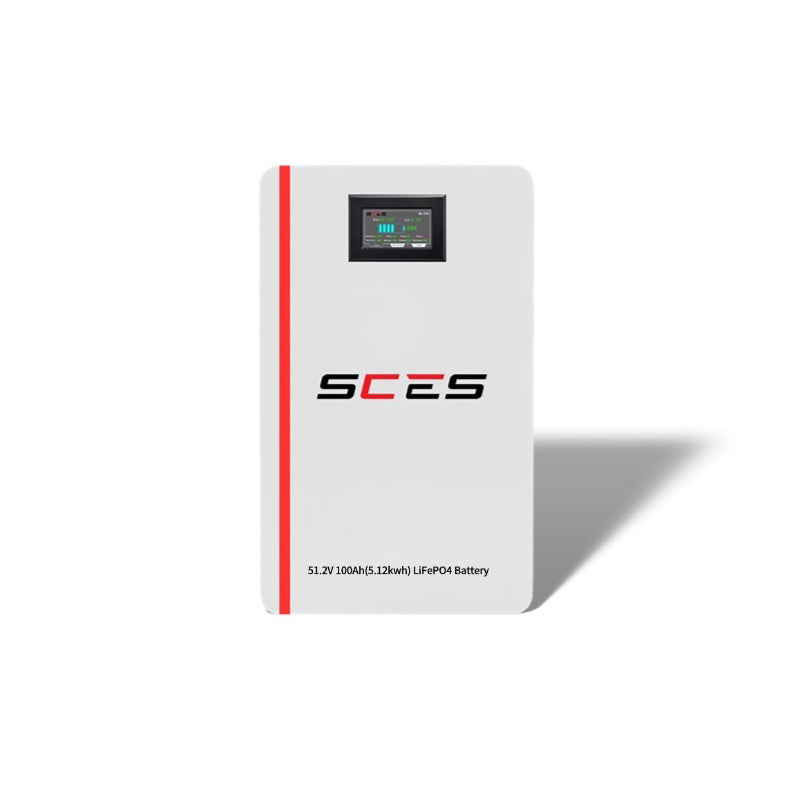

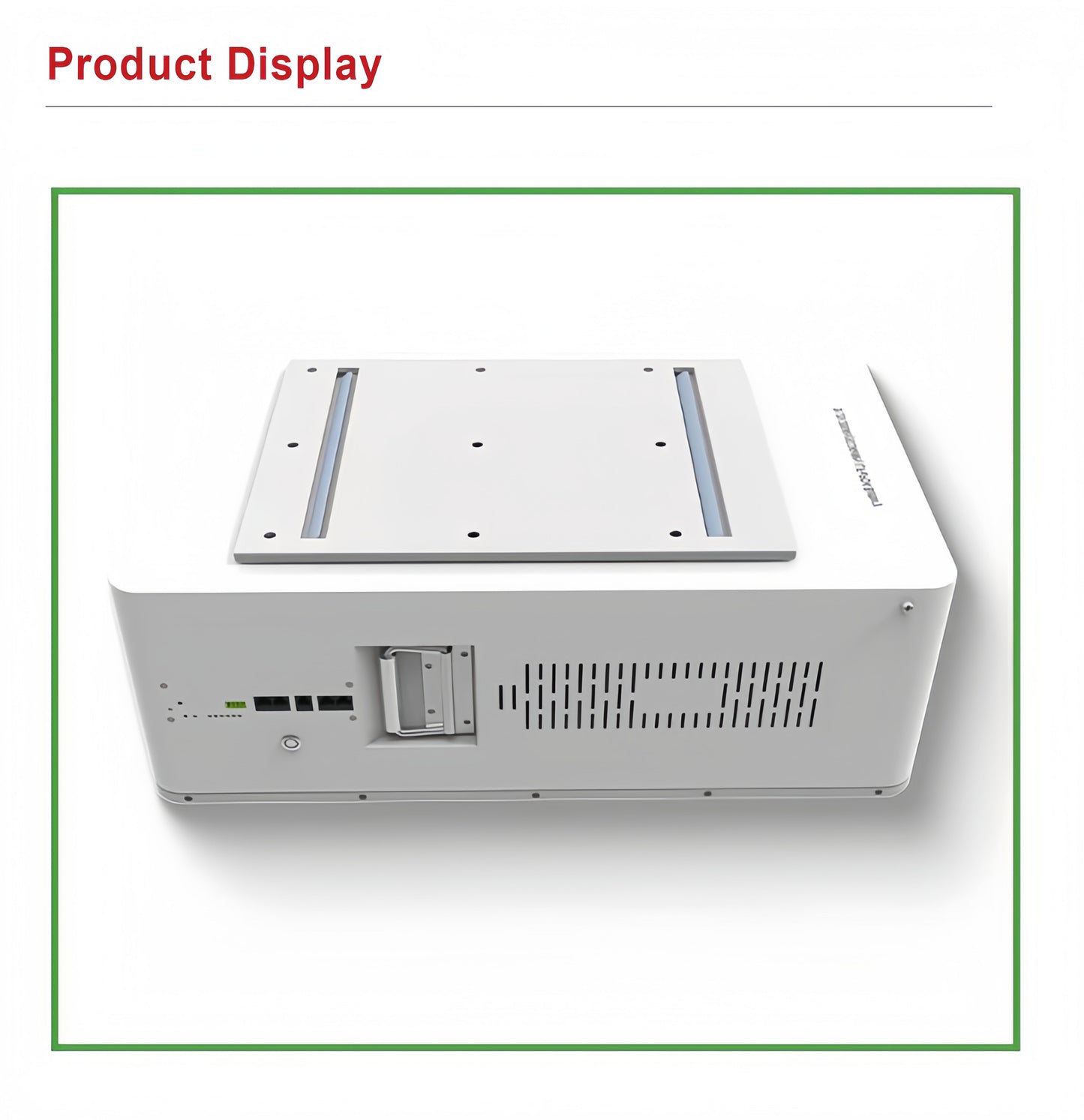

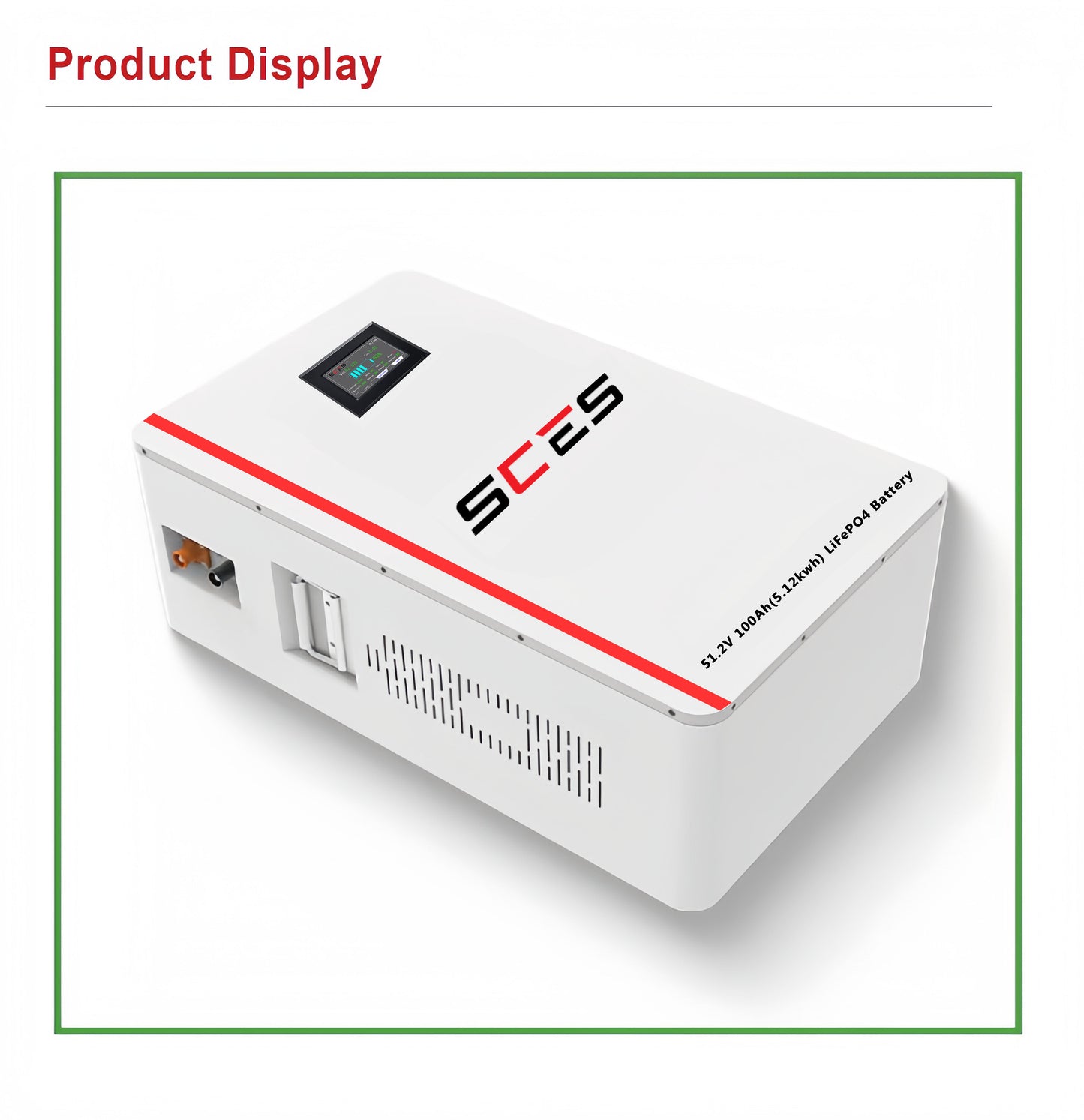

51.2V 5Kwh SCSE Power Wall LiFePO4 Battery Pack Wall-mounted for Home Power Solar Energy Storage System
51.2V 5Kwh SCSE Power Wall LiFePO4 Battery Pack Wall-mounted for Home Power Solar Energy Storage System
Specification(Preassembled powerwall)
Normal Voltage:51.2V
Norminal Capacity:100Ah
Energy Storage:5.12Kwh
Series or Parallel:16S1P
Size: L625W420*H154(MM)
Built-in BMS:16S 100A BMS
Net weight:51kg
Communication:CAN/RS485/RS232+LCD
Material: Lifepo4, Metal
Charge Current:100-200A
Maximum Charge Current:200A
Charge Voltage:56-57.6V
BMS Cut-off Voltage:57.6V
Reconnect Voltage:54.6V
Battery Cells inside Grade A EvE Cells
Stackable Type:up to 15 batteries
Share
You may want to know about this
Q: Which BMS is in the 48V battery box?
A: We use the 200A Bluetooth BMS in the box with CAN/RS485 communication.
Q: Is this the completed battery pack?Do I need anything else to run the battery?
A: Yes, we will test them before shipping,make sure the battery pack is able to work.we will prepare everything for you.
Q: If I want to build a 60kwh server rack system, what should I choose?
A: If you choose 48V 310Ah battery system(each one is 15Kwh),then you need 4 in total for yourr 60kwh power storage.
Q: What certifications do you have?
A: Our battery box has CE,and the battery cells have CE,UL, and MSDS.
Q: How do I set up the system?
A: The battery system can be connected to a PC, and you can set and manage the whole system on your computer.
Q: I have my own logo, can I print my logo on the battery?
A: Yes, we accept logo customization, but need large quantities (>10 sets). If you like any samples, please feel free to contact us:howard@eelbattery.com
